Introduction

A single-level index is an ordered file, and searching it means a binary search: $\lceil {\log }_2{b}_i\rceil$ block accesses. For the secondary index of the previous note that was 9 accesses over 442 blocks — better than scanning the data, but still logarithmic in a base of 2.

The insight of the multilevel index is that the index is a sorted file with a key field, so it can be indexed exactly like the data file was — and each level shrinks the search by the blocking factor rather than by half.

Multilevel Indexes

Definition

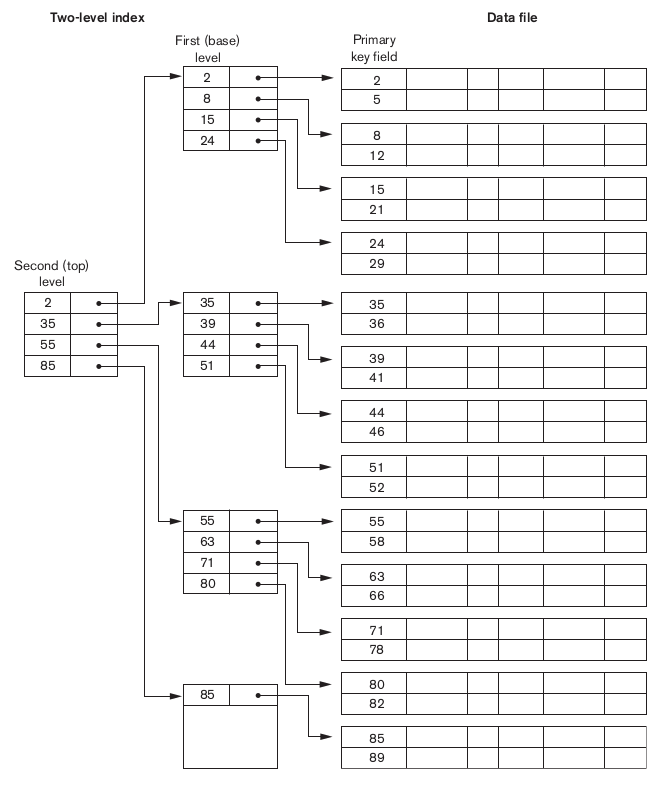

A multilevel index treats an index file as an ordered file and builds a primary index over it. The original index is the first (base) level; the index over it is the second level; the process repeats until a level fits in one block, the top level.

Every level above the first is a primary index over the level below: sparse, one entry per block, using block anchors. This is possible even when the base level is a dense secondary index, because the base level is physically ordered on its search key and its key values are unique (or made unique by indirection).

Fan-out

The number of entries per index block plays the role that "2" plays in binary search:

Definition

The fan-out $fo$ is the blocking factor of an index block — the number of index entries that fit in one block. Each level of a multilevel index is smaller than the level below it by a factor of $fo$.

With $r_1$ entries at the base level, the number of levels is

$$t=\lceil {\log }_{fo}{r}_1\rceil$$

and the search cost is

$$t+1\text{ block accesses (one per level, plus the data block)}$$

Because $fo$ is typically in the tens or hundreds while binary search's base is 2, the reduction is dramatic.

Applying it to the running example

The 30 000-record file of the previous note, with a dense secondary index of $r_1=30000$ entries and $fo=bf{r}_i=68$:

Level	Entries	Blocks
1 (base, dense)	30 000	$\lceil 30000/68\rceil =442$
2	442	$\lceil 442/68\rceil =7$
3 (top)	7	$\lceil 7/68\rceil =1$

$$t=3,\text{search cost}=3+1=\mathbf{4}\text{ block accesses}$$

Against 10 for the single-level version, and 1 500 for a linear scan.

The same treatment of the primary index (45 blocks, 3 000 base entries) gives a second level of $\lceil 45/68\rceil =1$ block, so $t=2$ and the search costs 3 accesses.

Access path	Block accesses
Linear search	1 500
Binary search on ordering field	12
Single-level secondary index	10
Multilevel secondary index	4
Multilevel primary index	3

Why the numbers stop shrinking

Each level costs one access and divides the remaining entries by $fo$, so the cost grows like ${\log }_{fo}r$. For $fo\approx 68$, three levels already address ${68}^3\approx 314000$ entries and four levels $\approx 21$ million. Real indexes are almost never deeper than 3–4 levels, which is why "an index lookup costs a handful of I/Os" is a safe rule of thumb.

ISAM and the Problem with Static Indexes

The multilevel index described above is static: the levels were computed once, from a file of a known size, and every block is full.

This is the classic ISAM (Indexed Sequential Access Method) organization, and it breaks down as soon as the file changes:

• Insertion into a full index block cannot simply shift entries — shifting propagates through the whole level, and changing a block anchor propagates upward to every level above.
• The practical workaround is an overflow chain per block: new entries that do not fit go into overflow blocks linked to their home block.
• Search now costs $t+(\text{length of the overflow chain})+1$, and the chains grow without bound.
• Deletions leave empty space that only reorganization reclaims.

The real cost of overflow chains

An ISAM index degrades unevenly. A key range that receives many inserts grows a long chain while the rest of the index stays pristine, so average search cost stays deceptively good while the hot part of the file gets slow. Restoring performance requires a full reorganization — rebuilding every level offline.

What is needed is an index that leaves space for growth inside each block and that grows or shrinks one node at a time, keeping itself balanced without reorganization. That is a dynamic multilevel index, and it is built on trees.

Trees as Index Structures

Tree terminology

A tree is made of nodes. Each node except the root has one parent and zero or more child nodes; a node with no children is a leaf, and a node with children is an internal node. The level of a node is its distance from the root (root is level 0), and the tree's height is the number of levels.

The mapping to indexes is direct: one node = one disk block, so the height of the tree is the number of block accesses per search, and a fat node (many children) is exactly a high fan-out.

Search trees

Definition

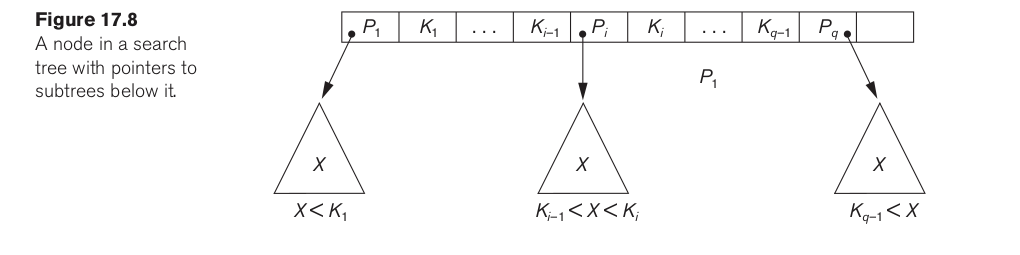

A search tree of order $p$ is a tree in which each node holds at most $p-1$ search values and $p$ pointers, arranged as

$$⟨P_1,K_1,P_2,K_2,\dots ,K_{q-1},P_q⟩q\le p$$

with $K_1<K_2<\cdots <K_{q-1}$, where $P_i$ points to the subtree holding all values $X$ with $K_{i-1}<X<K_i$.

Searching for value $K$ starts at the root, finds the position of $K$ among the node's values, and follows the corresponding pointer — one block access per level, exactly as in a multilevel index. Used as an index, each key value is stored alongside a data pointer to the record with that value.

Why a plain search tree is not enough

Nothing in the definition controls the tree's shape:

Problem	Consequence
The tree can become unbalanced	Some leaves sit far deeper than others, so search cost varies wildly and can degenerate toward $O(r)$
Nodes may be nearly empty	A node is a disk block; a node holding 2 of 68 possible entries wastes most of a block access
Deletion is awkward	Removing a value from an internal node requires reorganizing subtrees, with no rule guaranteeing the result stays usable

The fix is to impose two extra constraints — a minimum occupancy for every node, and the requirement that all leaves be at the same level. A search tree with those constraints is a B-tree, the subject of the next note.
