Introduction

Heap files and sorted files both make the DBMS hunt for a record: a linear scan costs $b/2$ block accesses on average, a binary search on the ordering field costs $\lceil {\log }_{2}b\rceil$. Hashing takes a different route — it computes where the record lives.

Definition

A hash file organization stores each record at an address derived from one of its fields by a hash function $h$. The field is the hash field; if it is also a key of the file, it is the hash key.

The payoff is that an equality search on the hash field — WHERE ssn = '123456789' — takes roughly one block access, independent of file size. The price is that hashing provides no help for anything else: no ordered retrieval, no range queries, no searching on other fields.

Organization	Equality search on the field	Ordered / range access
Heap	$b/2$	none (must sort)
Sorted (ordering field)	${\log }_{2}b$	excellent
Hashed (hash field)	~1	none

Internal Hashing

Internal hashing is hashing applied to a table held in main memory, and it is the model everything else builds on. The table is an array of $M$ slots, indexed $0\dots M-1$, and the hash function maps a key onto a slot number.

The workhorse function for numeric keys is the division-remainder method:

$$h(K)=KmodM$$

Choosing $M$

$M$ should be a prime number (or at least have no small factors). If $M$ shares factors with patterns in the keys — say $M=1000$ and keys are ids ending in fixed digits — whole ranges of slots go unused while others pile up. A prime $M$ spreads the values much more evenly.

Non-numeric keys must first be turned into an integer. Two common tricks:

• Character arithmetic — sum the numeric codes of the characters, then take $modM$.
• Folding — split the key into pieces of equal length, then add (or XOR) the pieces together before applying $modM$. Folding uses all of the key, so keys sharing a prefix or suffix still land apart.

Collisions

A hash function maps a large key space onto a small address space, so two distinct keys will eventually hash to the same slot. That is a collision, and the procedure for placing the second record is collision resolution.

Collisions are not a rare accident to be engineered away — they are guaranteed, and the quality of a hash organization is mostly the quality of its collision handling.

Collision Resolution

Method	How it works	Cost / behaviour
Open addressing	On collision, probe the following slots ($h(K)+1,+2,\dots$, wrapping around) until a free one is found. Search repeats the same probe sequence.	No extra space, but colliding records cluster together, and one cluster lengthens the search for unrelated keys
Chaining	Each slot holds a pointer to a linked list of overflow records kept in an extra area beyond the $M$ slots.	Search follows one pointer chain; deletion is easy; needs pointer space
Multiple hashing	On collision, apply a second hash function $h_2$; if that also collides, fall back to open addressing.	Avoids clustering better than plain probing, at the cost of extra computation

Keep the table from filling up

Hashing degrades sharply as the table fills. The load factor is

$$\alpha =\frac{\text{number of records}}{\text{number of slots}}$$

Performance stays close to one access while $\alpha$ is roughly 0.7 to 0.9; past that, probe sequences and overflow chains grow quickly. Hash files are therefore deliberately allocated with spare space.

Deletion under open addressing is awkward for the same reason: physically removing a record breaks the probe chain of records placed after it, so deleted slots are marked rather than emptied — the same deletion marker idea used in heap files.

External Hashing for Disk Files

Moving to disk changes one thing fundamentally: the unit of transfer is a block, not a record. Hashing to individual record addresses would waste an entire block access per record and make collisions catastrophic. So disk hashing hashes to buckets.

Definition

A bucket is either one disk block or a small cluster of contiguous blocks. The hash function maps a key to a bucket number, and a bucket-address table converts that bucket number into the actual disk block address.

$$h(K)=KmodM⟹\text{bucket }0\dots M-1\stackrel{\text{table}}{\to }\text{block address}$$

This indirection matters: it lets the file's blocks be relocated on disk without changing the hash function.

Because a bucket holds many records — bfr of them — a collision is only a problem when the bucket is full. Several keys hashing to the same bucket is the normal, desirable case.

Overflow handling

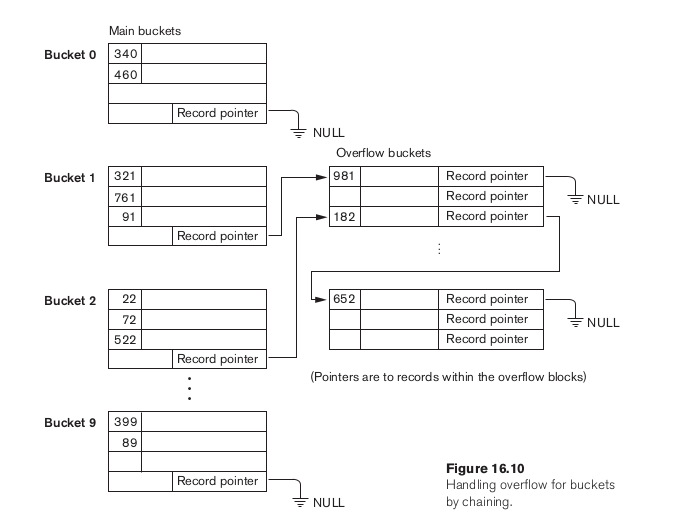

When a bucket fills, the extra records go into an overflow area, and each bucket keeps a pointer to a linked list (chain) of its own overflow records. Chaining is the standard choice on disk, since following a pointer costs one block access while probing neighbouring buckets would scatter reads across the file.

Retrieval cost is therefore:

$$\text{cost}=1+(\text{length of the overflow chain})$$

which stays near 1 block access as long as buckets are not overloaded — and that is the entire design goal.

Operations

• Insert — hash to the bucket, read it, add the record if there is room, write it back. If full, append to the overflow chain.
• Delete — locate the record, remove it, and if a record is available in the overflow chain, move it up into the main bucket so future searches stay short.
• Modify — changing a non-hash field is a read/write in place. Changing the hash field relocates the record, so it is implemented as a delete followed by an insert.

The problem with static hashing

Everything above is static hashing: $M$ is fixed when the file is created. That is fine for a file of stable size and bad for anything that grows.

Why $M$ fixed hurts

• Too small an $M$ — buckets overflow, chains grow, and the one-access guarantee is lost.
• Too large an $M$ — most buckets sit mostly empty, wasting a great deal of disk.
• Fixing it means rehashing — choosing a new $M$ and redistributing every record in the file, since the addresses all change. For a large file this is a full offline reorganization.

The techniques in the next section exist to make a hash file grow and shrink gracefully, without ever rehashing the whole thing.

Dynamic File Expansion

All three schemes below share the same core idea, so it is worth stating once.

Instead of using $h(K)modM$, apply a hash function that produces a long bit string — the hash value — and use only the leading $i$ bits of it to choose a bucket:

$$h_i(K)=\text{first }i\text{ bits of }h(K)$$

Using $i$ bits gives $2^i$ possible buckets. Adding one more bit doubles the address space, and — crucially — it splits each bucket into exactly two: the records whose next bit is 0 and those whose next bit is 1. So the file can be expanded one bucket at a time, touching only the records in the bucket being split. No global rehash.

The three techniques differ in how they keep track of which buckets have been split.

Extendible Hashing

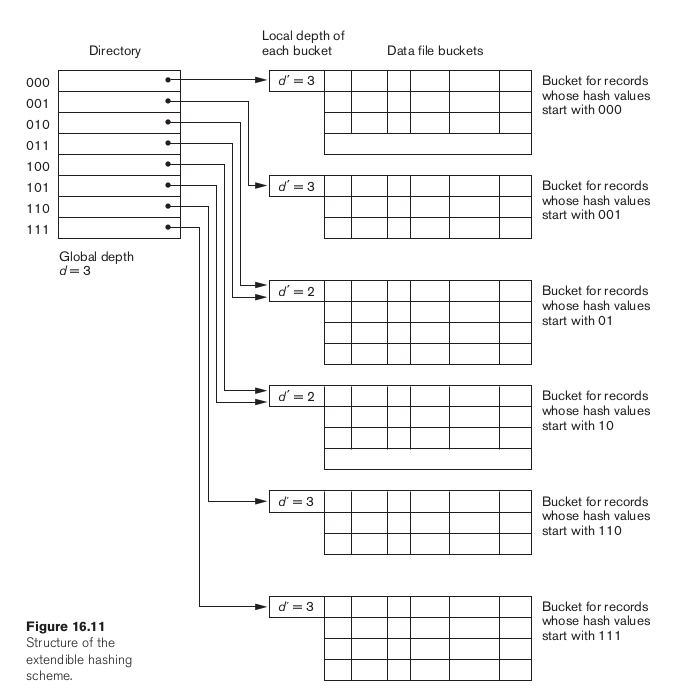

Extendible hashing adds a level of indirection: a directory — an array of $2^d$ pointers to buckets, where $d$ is the global depth.

To find a record, take the first $d$ bits of $h(K)$, use them as an index into the directory, and follow the pointer to the bucket.

Two directory entries may point to the same bucket. Each bucket therefore records its own local depth $d^{\prime }$, with $d^{\prime }\le d$: the number of leading bits that all records in that bucket actually share. A bucket with $d^{\prime }<d$ is shared by $2^{d-d^{\prime }}$ directory entries.

Splitting a full bucket with local depth $d^{\prime }$:

1. Distribute its records into two buckets using bit $d^{\prime }+1$; both new buckets get local depth $d^{\prime }+1$.
2. If $d^{\prime }<d$, the directory already has enough entries — just repoint the affected half at the new bucket. The directory does not change size.
3. If $d^{\prime }=d$, there are no spare bits: double the directory ($d\leftarrow d+1$), copying each old pointer into the two new entries that correspond to it, then repoint as in step 2.

Deletion works in reverse: when two buddy buckets (same local depth, hash values differing only in the last bit) become empty enough, they are merged and $d^{\prime }$ decreases. If every bucket has $d^{\prime }<d$, the directory can be halved.

Cost

Retrieval is two block accesses — one for the directory entry, one for the bucket — and often one, because the directory is small enough to stay in main memory. Doubling the directory is cheap since it only copies pointers, not records.

The directory is the weak point

The directory must be maintained, and it doubles in size the moment a single bucket at maximum depth overflows. With a badly skewed key distribution the directory can grow far larger than the data warrants.

Dynamic Hashing

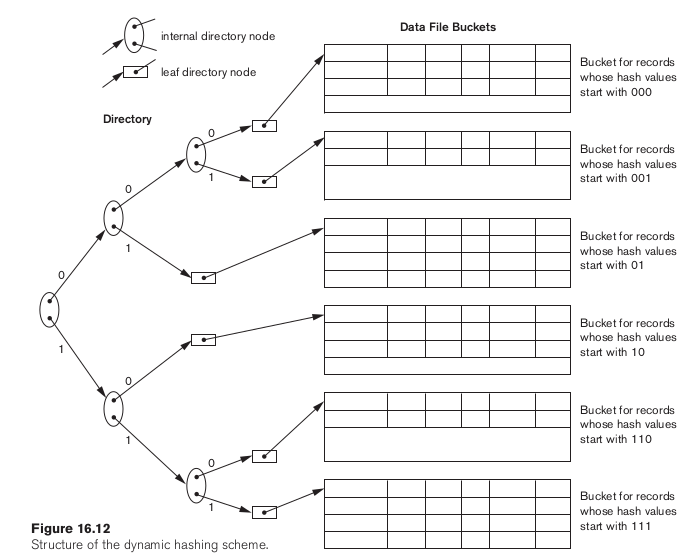

Dynamic hashing is the same splitting idea with the flat directory replaced by a binary trie: internal nodes have a 0 child and a 1 child, and the leaves point to buckets. Searching means walking down the tree consuming one bit of $h(K)$ per level.

Splitting a bucket simply turns its leaf into an internal node with two new leaves — a purely local change. There is no doubling step, so a skewed distribution grows only the branches it actually uses rather than the whole directory.

The trade-off is that traversing a tree costs more than indexing an array, and the tree itself needs pointer space and maintenance. In practice extendible and linear hashing are the ones that get implemented.

Linear Hashing

Linear hashing is the most elegant of the three: it allows the file to grow and shrink with no directory at all.

Extendible and dynamic hashing both need a structure — an array, a trie — whose job is to remember which buckets have already been split. Linear hashing removes the need for one by giving up the freedom to choose: buckets are split in a fixed order, $0,1,2,\dots$, so a single counter is enough to know the answer.

Setup

The file starts with $M$ buckets, numbered $0\dots M-1$, using $h_0(K)=KmodM$. Two extra pieces of state are kept:

• $n$ — the split pointer, the number of the next bucket to be split. It starts at $0$.
• a second hash function $h_1(K)=Kmod2M$.

The search rule

$$\text{bucket}=\{\begin{array}{ll}{h}_0(K),& \text{if }{h}_0(K)\ge n(\text{not yet split})\\ h_1(K),& \text{if }{h}_0(K)<n(\text{already split})\end{array}$$

Read it as a single question: has my bucket been split yet? Buckets $0\dots n-1$ have been, buckets $n\dots M-1$ have not — and that is exactly what the test $h_0(K)<n$ decides. If the bucket has not been split, $h_0$ still points at the right place; if it has, the records were redistributed by the finer function, so $h_1$ must be used.

Why a record can never end up lost

Because $2M$ is a multiple of $M$, the value $Kmod2M$ can only be one of two things:

$$h_1(K)\in \{h_0(K),h_0(K)+M\}$$

So splitting bucket $j$ can send each of its records to just two destinations: it stays in $j$, or it moves to $j+M$. A record never migrates to an unrelated bucket, which is why a partially split file is still searchable with one counter — no per-bucket bookkeeping is required.

Splitting

The counter-intuitive part: when a bucket overflows, the bucket that gets split is not the one that overflowed — it is bucket $n$, whatever that happens to be. The overflowing bucket uses an overflow chain in the meantime; it will be split in its turn as $n$ sweeps past it, and the chain is absorbed at that moment.

Each split:

1. Appends a new bucket at the end of the file, which is bucket $M+n$.
2. Redistributes the records of bucket $n$ — including its overflow chain — between $n$ and $M+n$ using $h_1$.
3. Increments $n$.

A worked trace

Take $M=4$ and $\mathtt{\text{bfr}}=2$ records per bucket, starting from $n=0$:

$$b_0=\{4,8\}{b}_1=\{9,13\}{b}_2=\{6\}{b}_3=\{15\}$$

• Insert 17. $h_0(17)=1$, and $1\ge n=0$, so it belongs in $b_1$ — which is full, so 17 goes to $b_1$'s overflow chain. The overflow triggers a split of bucket $n=0$, not bucket 1. Bucket 0's records go through $h_1=Kmod8$: $8\mapsto 0$, $4\mapsto 4$. Result: $b_0=\{8\}$, new $b_4=\{4\}$, and $n=1$.
• Insert 21. $h_0(21)=1$, and $1\ge n=1$, so $b_1$ again — still full, so 21 joins the chain. This time the split does land on bucket 1, because $n=1$. Its four records $\{9,13\}$ plus the chain $\{17,21\}$ are redistributed by $h_1$: $9\mapsto 1$, $17\mapsto 1$, $13\mapsto 5$, $21\mapsto 5$. Result: $b_1=\{9,17\}$, new $b_5=\{13,21\}$, the chain is gone, and $n=2$.

Searching now, with $n=2$: for key 13, $h_0(13)=1<2$, so use $h_1(13)=5$ — bucket 5, correct. For key 15, $h_0(15)=3\ge 2$, so bucket 3 — also correct, even though bucket 3 has never been touched.

Completing a round

When $n$ reaches $M$, every original bucket has been split and the file holds $2M$ buckets. A round is complete: $n$ resets to $0$, $M$ doubles, and the hash functions shift up one level — $h_1$ becomes the new $h_0$ and a new, finer $h_1$ takes its place. In general, with $M_0$ the original number of buckets, round $i$ uses

$$h_i(K)=Kmod(2^i{M}_0)$$

so the file doubles once per round while the search rule above never changes.

Controlling splits with the load factor

Splitting on every overflow works, but it keeps the file only about 60% full — a lot of wasted space. Implementations therefore drive splitting from the file load factor instead:

$$l=\frac{r}{\mathtt{\text{bfr}}\times N}$$

where $r$ is the current number of records, $\mathtt{\text{bfr}}$ the maximum number of records per bucket, and $N$ the current number of buckets. A split is triggered when $l$ rises above an upper threshold — typically 0.9 — regardless of whether anything overflowed, which buys much better space utilization at the cost of slightly longer overflow chains on the buckets ahead of $n$.

Contraction

Contraction is the mirror image, and it is what keeps the load factor from collapsing when records are deleted. When $l$ falls below a lower threshold — typically 0.7 — buckets are recombined, also linearly: decrement $n$, merge the last bucket $M+n$ back into bucket $n$, and remove it from the file, decrementing $N$. With the two thresholds working together, the file load is held inside the desired band as the file grows and shrinks.

Why linear hashing wins in practice

• It keeps the load factor fairly constant while the file grows and shrinks, because splits and merges are both driven by the same measurement.
• It needs no directory — just the counter $n$ and the current $M$ — so there is nothing to double, nothing to traverse, and nothing extra to keep in memory.

The price is that the bucket being split is chosen by position, not by need: a bucket may be split while nearly empty, and an overloaded bucket must wait behind an overflow chain until $n$ reaches it.

Comparison and When to Use Hashing

	Static hashing	Extendible	Dynamic	Linear
Directory structure	bucket-address table (fixed)	array of $2^d$ pointers	binary trie	none
Grows without full rehash	✗	✓	✓	✓
Splits which bucket	—	the one that overflowed	the one that overflowed	bucket $n$, in order
Typical retrieval cost	1 + overflow chain	1–2	1 + trie traversal	1 + overflow chain
Main drawback	overflow chains grow; rehashing is offline	directory can double abruptly	tree maintenance cost	overflow chains on unsplit buckets

What hashing cannot do

Hashing scatters records deliberately, so a good hash function destroys any relationship between key order and physical position. Consequently:

• Range queries (WHERE age BETWEEN 20 AND 30) require reading the entire file.
• Ordered retrieval requires a full external sort.
• Searching on any field other than the hash field is a linear scan, exactly as in a heap file.
• The hash field is usually forced to be a key; hashing on a field with few distinct values piles everything into a handful of buckets.

So the choice between the organizations is really a choice about the access pattern:

Dominant access pattern	Best organization
Equality lookup on one key field	Hashing
Range and ordered access	Sorted file + index, or a B⁺-tree
Bulk load, full scans, no lookups	Heap file

This is also why real systems rarely rely on a hash organization alone. What they do instead is keep the data in some primary organization and build separate access structures — indexes — over the fields that queries actually use, including hash indexes for equality and B⁺-tree indexes for ranges. That is the subject of the indexing chapter.
